MicroBlog

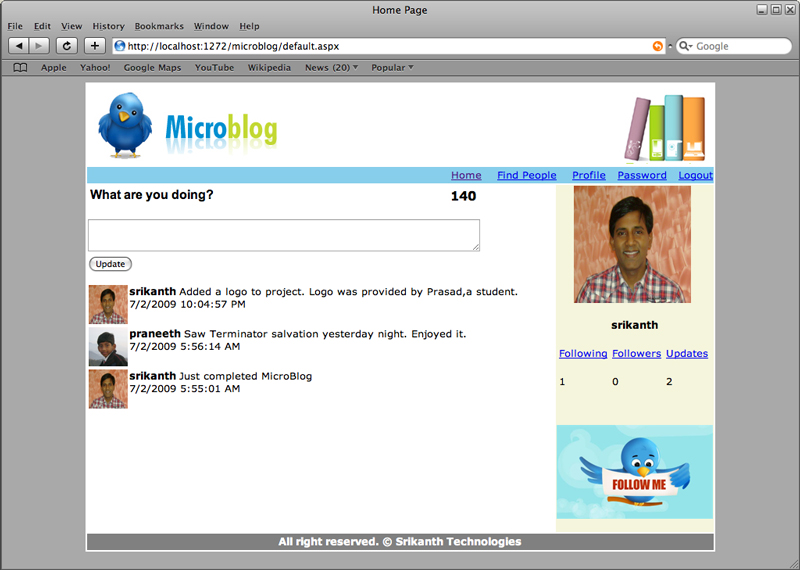

This web application is similar to twitter.com. It allows registered members to post updates, which are displayed to followers of the user. A user can have followers and friends (users who follow this user).

The following are the topics of ASP.NET used in this project.

Asp.Net 3.5
C# Language
SQL Server 2005 Express Edition
Visual Studio.NET 2008
Layered Architecture with Presentation Layer and Data Access Layer
All database manipulations are done with stored procedures.
Stored procedures are accessed using classes in DAL - Data Access Layer.
ObjectDataSource is used in presentation layer to talk to DAL.
DataList is used to display and delete data
Membership and login controls are used to implement security.
Master page and themes are used
ADO.NET is used to access database

The following are the major operations in this application.

User Registration
Login
Password Recovery
Change password
Home page
Post an update
List of user update
Delete an update
Finding people
Adding friend
Removing friend
Changing the profile of the user
Logout

Steps to download, deploy and run this project

The following are the steps to be taken to run the existing part of the application. This project makes use of membership feature of ASP.NET.

Download MicroBlog.rar and unzip it into any directory in your system. For example, if you extract to c:\ then it will create a directory c:\microblog.
Open Visual Studio.NET 2008 or Visual Web Developer 2008.
Open the project from the directory into which you extracted project. For example, c:\microblog
Select Website->ASP.NET Configuration option
Select Security tab
Select Use the security Setup Wizard to configure security step by step.
Select From Internet option in Step 2
Click on Next button in the remaining screens and finally click on Finish.
It create a database called ASPNETDB.MDF with required tables and other database components

Open the database in Server explorer or Database Explorer and create tables - MB_PROFILES, MB_FRIENDS, MB_UPDATES with the following structure. The following tables show the structure of these tables.

MB_PROFILES

userid          uniqueidentifier  (primary key)
onlinebio       varchar(200)
picturefile     varchar(20)
followerscount  int
friendscount    int
updatescount    int

Note : userid is linked with userid of ASPNET_USERS table.

MB_UPDATES

updateid        int    identify column (primary key)
userid          uniqueidentifier
test            varchar(140)
timestamp       datetime

Note : userid is linked with userid of ASPNET_USERS table.

MB_FRIENDS

userid          uniqueidentifier
friendid        uniqueidentifier

Note: userid is linked with userid of ASPNET_USERS table. friendid is linked with userid of ASPNET_USERS table. Both userid and friendid put together become primary key

Create the following trigger for ASPNET_USERS table/li>

CREATE TRIGGER trg_insert_profile_row
ON dbo.aspnet_Users
FOR Insert
AS
declare @userid uniqueidentifier

 /* insert a row into profiles table */
 select @userid = userid from inserted

 insert into mb_profiles values(@userid,'','default_profile',0,0,0);

Create the following stored procedure in the database.

CREATE PROCEDURE dbo.mb_addfriend(@userid uniqueidentifier, @friendid uniqueidentifier)
AS
 begin tran
 begin try


   insert into mb_friends values(@userid, @friendid)

   update mb_profiles set friendscount = friendscount + 1
   where userid  = @userid;

   update mb_profiles set followerscount = followerscount + 1
   where userid = @friendid;

   commit tran
 end try
 begin catch
   rollback tran
   raiserror('Could Not Add Friend',16,1);
 end catch



CREATE PROCEDURE dbo.mb_addupdate(@userid uniqueidentifier, @text nvarchar(140))
as
 begin tran
 begin try
    insert into mb_updates(userid,[text],[timestamp])
    values (@userid,@text, getdate())

    update mb_profiles set updatescount = updatescount + 1
    where userid = @userid
    commit tran
end try
begin catch
   rollback tran
   raiserror('Could not add an update!',16,1)
end catch



CREATE PROCEDURE dbo.mb_deleteupdate(@updateid int)
AS
declare @userid uniqueidentifier
 begin tran
 begin try

   /* get userid for this update */
   select @userid = userid from mb_updates
   where updateid = @updateid

   delete from mb_updates where updateid = @updateid

   update mb_profiles set updatescount = updatescount -1
   where userid  = @userid;

   commit tran
 end try
 begin catch
   rollback tran
   raiserror('Could not delete update',16,1);
 end catch


CREATE PROCEDURE dbo.mb_findpeople(@userid uniqueidentifier, @pattern  nvarchar(50))
AS
   select au.userid, username, picturefile, onlinebio, followerscount, friendscount, updatescount
   from mb_profiles p inner join aspnet_users au on (au.userid=p.userid)
   where au.userid <> @userid and  username like '%' + @pattern + '%' and
        p.userid not in
          ( select friendid from mb_friends
            where userid = @userid)




CREATE PROCEDURE dbo.mb_getfriends(@userid uniqueidentifier)
AS
   select au.userid, username, picturefile, onlinebio, followerscount
   from mb_profiles p inner join aspnet_users au on (au.userid=p.userid)
   where p.userid in
          ( select friendid from mb_friends
            where userid = @userid)


CREATE PROCEDURE dbo.mb_gettotalupdates(@userid uniqueidentifier)
AS

 select picturefile,username, text, timestamp from mb_updates u inner join aspnet_users au on (u.userid = au.userid) inner join mb_profiles p on (u.userid = p.userid)
 where  u.userid = @userid
 union
 select picturefile, username, text, timestamp from mb_updates u inner join aspnet_users au on (u.userid = au.userid) inner join mb_profiles p on (u.userid = p.userid)
 where u.userid in (select friendid from mb_friends where userid = @userid)
 order by  timestamp desc


CREATE PROCEDURE dbo.mb_getupdates(@userid uniqueidentifier)
AS

 select updateid,picturefile, username, text, timestamp
 from mb_updates u inner join aspnet_users au on (u.userid = au.userid)
    inner join mb_profiles p on (u.userid = p.userid)
 where  u.userid = @userid
 order by timestamp desc




CREATE PROCEDURE dbo.mb_getuserdetails(@userid uniqueidentifier)
AS

  select onlinebio, picturefile, followerscount, friendscount, updatescount
  from mb_profiles where userid = @userid



CREATE PROCEDURE dbo.mb_removefriend(@userid uniqueidentifier, @friendid uniqueidentifier)
AS
 begin tran
 begin try


   delete from mb_friends where userid = @userid and friendid = @friendid

   update mb_profiles set friendscount = friendscount - 1
   where userid  = @userid;

   update mb_profiles set followerscount = followerscount - 1
   where userid = @friendid;

   commit tran
 end try
 begin catch
   rollback tran
   raiserror('Could Not Remove Friend',16,1);
 end catch


CREATE PROCEDURE dbo.mb_updateuserprofile(@userid uniqueidentifier,@onlinebio nvarchar(200),@picturefile nvarchar(50))
AS
    if  @picturefile <> ''
       update mb_profiles set picturefile = @picturefile, onlinebio = @onlinebio
       where userid = @userid;
    else
       update mb_profiles set onlinebio = @onlinebio
       where userid = @userid;

In the Application Configuration Tool, go to Application Configuration.
Select Configure SMTP Email settings
Enter Server name as localhost and From as admin@systemname.com. Replace systemname with the name of your system
Click on Save button
Go to Solution Explorer and make login.aspx the startup page.
Run project from Visual Studio.NET 2008 or Visual Web Developer 2008.
You should see login.aspx page.
Create new user using registration page and then login with that user name
Test the rest of the options.
