Social Networking Website - Friends.Com

This website allows users to register, add other members as friends and create and join communitites. It provides scrapbook for each user and other typical features like change profile, change password etc.

The following are major activities in this application.

Technologies and Products Used

Steps to download, deploy and run this project

The following are the steps to related to be taken to run the existing part of the application. This project makes use of membership feature of ASP.NET.So, we have to configure the website using ASP.NET Configuration tool as explained below.
  1. Download friends.zip and unzip it into any directory in your system. For example, if you extract to c:\ then it will create a directory c:\friends. The download contains all ASP.NET pages but it has NO DATABASE. We have to create database objects using ASP.NET configuration tool manually.
  2. Open Visual Studio.NET 2008 or Visual Web Developer 2008.
  3. Open the project from the directory into which you extracted project.For example, c:\friends
  4. Select Website->ASP.NET Configuration option
  5. Select Security tab
  6. Select Use the security Setup Wizard to configure security step by step.
  7. Select From Internet option in Step 2
  8. Click on Next button in the remaining screens and finally click on Finish.
  9. It create a database called ASPNETDB.MDF with required tables and other database components

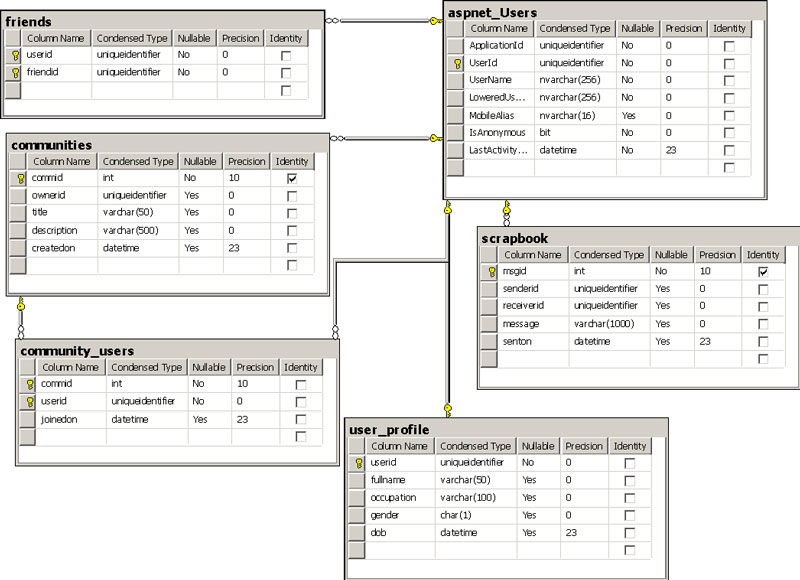

  10. Open the database in Server explorer or Database Explorer and create tables - USER_PROFILE, COMMUNITIES, COMMUNITY_USERS, FRIENDS and SCRAPBOOK. The structure is shown in the picture below. ASPNET_USERS table is already created by ASP.NET. The rest of the tables are to be created. Column MSGID in SCRAPBOOK and COMMID in COMMUNITIES are identity columns.
  11. While creating table make sure you define Foreign keys as follows.

    Child Table and Foregin Key Parent Table and Parent Key
    USER_PROFILE - USERID ASPNET_USERS - USERID
    FRIENDS - USERID ASPNET_USERS - USERID
    FRIENDS - FRIENDID ASPNET_USERS - USERID
    SCRAPBOOK - SENDERID ASPNET_USERS - USERID
    SCRAPBOOK - RECEIVERID ASPNET_USERS - USERID
    COMMUNITIES - OWNERID ASPNET_USERS - USERID
    COMMUNITY_USERS - USERID ASPNET_USERS - USERID
    COMMUNITY_USERS - COMMID COMMUNITIES - COMMID

  12. Create the following triggers and stored procedure in the database.
    CREATE TRIGGER Trg_insert_row_into_user_profile
    ON dbo.aspnet_Users
    FOR  INSERT
    AS
    	declare @userid  uniqueidentifier
    	select @userid = userid  from inserted

    	insert into user_profile
    	   values( @userid, null,null,null,null)



    CREATE PROCEDURE dbo.DeleteCommunity(@commid int)
    AS
      begin tran
         delete from community_users where commid = @commid;
         delete from communities where commid = @commid;
      commit tran



    CREATE PROCEDURE dbo.GetFriends(@userid as varchar(50))
    AS
    	select  u.userid,u.username,fullname
    	from aspnet_users u join  user_profile up
    	on  u.userid = up.userid
    	where u.userid in (
    	  select friendid from friends
    	  where  userid = convert(uniqueidentifier,@userid) );



    CREATE PROCEDURE dbo.GetMessages(@userid as varchar(50))
    AS
    	select  msgid,userid,username, message, senton
    	from aspnet_users u join scrapbook s
    	on  u.userid = s.senderid
    	where  s.receiverid = @userid


    CREATE PROCEDURE dbo.GetUserDetails(@userid varchar(50))
    AS
      select u.userid, username, fullname, occupation,
          gender = case gender
            when  'm' then 'Male'
            else 'Female'
           end,
          dob = convert(varchar(10), dob, 3)
      from  user_profile up join aspnet_users  u
      on  up.userid = u.userid
      where   u.userid = convert(uniqueidentifier,@userid);


    CREATE PROCEDURE dbo.SearchFriends(@name as varchar(30))
    AS
    	select  u.userid,username,fullname
    	from	 aspnet_users u join  user_profile up
    	on  u.userid = up.userid
    	where  username like '%' +  @name + '%'
    	  or  fullname like '%' + @name + '%';



    CREATE PROCEDURE dbo.SendMessage(@fromuserid uniqueidentifier,@touserid uniqueidentifier,
    	@text varchar(2000)	)
    AS
        insert into scrapbook
           values(@fromuserid,@touserid,@text,getdate());


  13. Goto Solution Explorer and make login.aspx the startup page.
  14. Run project from Visual Studio.NET 2008 or Visual Web Developer 2008.
  15. You should see login.aspx page.
