Creating Custom Directives in Angular

In this blog, I create custom directives in Angular and show how to use them in Angular component.

In order to create a custom attribute directive, we need to take the following steps:

Create a class that is decorated with @Directive decorator
Specify the attribute that will be associated with this directive using selector option in @Directive decorator
Inject ElementRef that refers to element that is using the directive we are creating, using Dependency injection in constructor
Use nativeElement to get access to native element in HTML document so that we can get and set attributes of HTML element
We need to inject Renderer in order to generalize our rendering process as Angular apps can run in different environments. We use renderer object to set properties or attributes of the element.

Custom Directive - TodayDirective

The following directive is an attribute directive used to place system date in the element that uses this attribute.

Here are the files related to it.

today.directive.ts

import { Directive, ElementRef, Renderer } from '@angular/core';

@Directive({
    selector: '[stToday]',   // attribute to be used
})
export class TodayDirective {
     constructor( element: ElementRef , renderer : Renderer) {
        var today = new Date().toDateString()
        renderer.setElementProperty(element.nativeElement,'innerText', today)  // channge innerText property of the element

     }
 }

use-custom-directive.component.ts

import { Component } from '@angular/core';

@Component({
    selector: 'st-use-custom-directive',
    templateUrl : 'user-custom-directive.component.html'
})
export class UseCustomDirectiveComponent  {

}

use-custom-directive.component.html

<h1  stToday></h1>

When you run UseCustomDirectiveComponent, the content of h1 is replaced with system date. See the screenshot at the end of the blog.

App.module.ts

import { BrowserModule } from '@angular/platform-browser';
import { NgModule } from '@angular/core';
import { TodayDirective } from './today.directive';
import { UseCustomDirectiveComponent } from './use-custom-directive.component';

@NgModule({
  declarations: [
     UseCustomDirectiveComponent, TodayDirective
  ],
  imports: [
    BrowserModule
  ],
  providers: [],
  bootstrap: [UseCustomDirectiveComponent]
})
export class AppModule { }

index.html

<!doctype html>
<html lang="en">
<head>
  <meta charset="utf-8">
  <title>Custom Directives</title>
  <base href="/">

  <meta name="viewport" content="width=device-width, initial-scale=1">
  <link rel="icon" type="image/x-icon" href="favicon.ico">
</head>
<body>
  <st-use-custom-directive></st-use-custom-directive>
</body>
</html>

HighlightDirective

This directive is to highlight the element by changing color and size of the element that is associated with it whenever mouse moves onto it. It changes size and color of the element as mouse moves onto it and then preserves the original color and size of the element when mouse moves out of the element.

Here are the files related to it.

Highlight-directive.ts

import { Directive, ElementRef, Renderer, HostListener, Input } from '@angular/core';

@Directive({
    selector: '[stHighlight]',
})
export class HighlightDirective {
     orgSize : string;
     orgColor : string;

     // Receive input - color and size - from client
     @Input('size')  size : string = '20pt';
     @Input('color') color : string = 'red';


     constructor( private element: ElementRef , private renderer : Renderer) {
          // preserve original color and font-size
          this.orgSize = element.nativeElement.getAttribute("font-size")
          this.orgColor = element.nativeElement.getAttribute("color")
     }

     // Listen to event of the client - mouseenter
     @HostListener('mouseenter') onMouseEnter() {
        // set new color and font-size
        this.renderer.setElementStyle(this.element.nativeElement, 'font-size',this.size);
        this.renderer.setElementStyle(this.element.nativeElement, 'color',this.color);
     }

    // Listen to event of the client - mouseleave
    @HostListener('mouseleave') onMouseLeave() {
        // restore original color and font-size
        this.renderer.setElementStyle(this.element.nativeElement, 'font-size',this.orgSize);
        this.renderer.setElementStyle(this.element.nativeElement, 'color',this.orgColor);
    }
}

A few points about the code:

HostListener is used to listen to an event related to element associated with directive. We need to provide the name of the event in parentheses.
We want to preserve the original font-size and color so that we can reset content to original size and color when mouse moves out of element. Method getAttribute() of nativeElement returns the value of the given attribute for DOM element.

We have to include this directive in app.module.ts as follows:

import { BrowserModule } from '@angular/platform-browser';
import { NgModule } from '@angular/core';
import { TodayDirective } from './today.directive';
import { HighlightDirective } from './highlight.directive';
import { UseCustomDirectiveComponent } from './use-custom-directive.component';

@NgModule({
  declarations: [
     UseCustomDirectiveComponent, TodayDirective, HighlightDirective
  ],
  imports: [
    BrowserModule
  ],
  providers: [],
  bootstrap: [UseCustomDirectiveComponent]
})
export class AppModule { }

Modify use-custom-directive.component.html as follows to use new custom directive:

<pre class="code">
<h1  stToday></h1>

<div stHighlight  size="20pt">Srikanth Technologies</div>

<div stHighlight  color="green"  size="30pt">Srikanth Pragada</div>

When the attribute directive stHighlight is used, the component (div) is automatically passed to HighlightDirective and it starts listening to its events. Value passed to color attribute is automatically passed to input property color in HighlightDirective class.

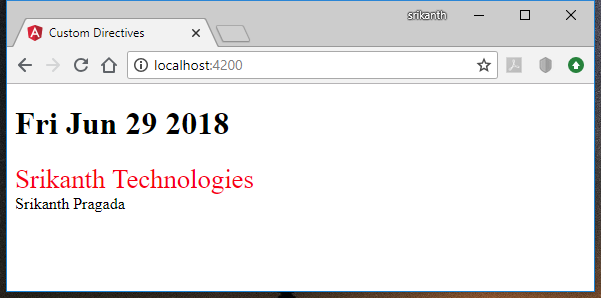

The following image shows directive in action when mouse moves over first div.
