Consuming Web API from AngularJS

In this blog, we will see the following :

How to create Web API of ASP.NET to manage Contacts using LINQ To SQL
How to consume Web API using AngularJS

This blog uses the following products and technologies.

Web API of ASP.NET
LINQ To SQL to access SQL Server
AngularJS core and AngularJS Resource

Please note, blog Contacts Web API and jQuery Client shows how to access Web API using jQuery. This blog shows how to access Web API using AngularJS. Data binding and module ngResource of AngularJS make it more simpler than jQuery.

Creating Web API

First we create a new project for Web API. This project uses a single Web API Controller to manage contacts, which are stored in CONTACTS table in SQL Server database.

Follow the steps given below:

Select File -> New Project in Visual Studio 2013. I am using Visual Studio Express 2013 for Web
Select Visual C# under templates and ASP.NET Web Application under projects
Give a name to project and select location where you want to create this project
Click on Ok to get to next screen

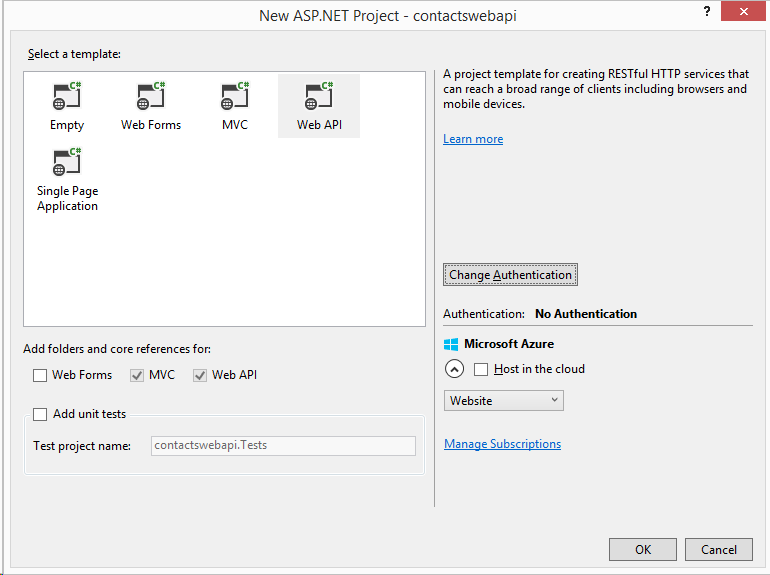

Select Web API as the template. This automatically selects MVC and Web API checkboxes at the bottom of this window
Click on Change Authentication button and select No Authentication in Change Authentication window
Your window should look like below. Click on Ok to create project
Select App_Data folder in Solution Explorer. Select Project -> New Items -> Sql Server Database. Change database name to Contacts.Mdf
Double click on Contacts.Mdf to open in Server Explorer. Select Database and choose New Query option from popup menu

Create CONTACTS table and insert some sample data by giving the following commands in Query Window and run them

create table Contacts
( Name		varchar(50) primary key,
  Email		varchar(50),
  Mobile	varchar(30)
);

insert into Contacts values ('Srikanth Pragada','srikanthpragada@yahoo.com','9059057000');
insert into Contacts values ('Praneeth Pragada','praneethpragada@yahoo.com','8020081000');

Go to Models folder and add the following classes related LINQ To SQL

Contact.cs

using System.Data.Linq.Mapping;
using System.Linq;
namespace contacts_webapi.Models
{
    [Table (Name="Contacts")]
    public class Contact
    {
        [Column (IsPrimaryKey = true)]
        public string Name { get; set; }
        [Column]
        public string Email { get; set; }
        [Column]
        public string Mobile { get; set; }
    }
}

ContactsDataContext.cs

using System.Data.Linq;
using System.Linq;

namespace contacts_webapi.Models
{
    public class ContactsDataContext : DataContext
    {
            public ContactsDataContext()
                : base(@"Data Source=(LocalDB)\v11.0;AttachDbFilename=|datadirectory|\Contacts.mdf;Integrated Security=True")
            {
            }

            public Table<Contact> Contacts {
                get {
                    return  GetTable<Contact>();
                }
            }
     }
}

Go to Controllers folder and create a new Web API using Project -> Add New Item -> Web API Controller Class (v2). Write the following code in that.

using contacts_webapi.Models;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Net;
using System.Net.Http;
using System.Web.Http;

namespace contacts_webapi.Controllers
{
    public class ContactsController : ApiController
    {
        // GET  all contacts
        public IEnumerable<Contact> Get()
        {
            ContactsDataContext ctx = new ContactsDataContext();
            return ctx.Contacts;
        }

        // GET contact details for a single contact by name (id is name)
        public Contact Get(String id)
        {
            ContactsDataContext ctx = new ContactsDataContext();
            var contact = (from c in ctx.Contacts
                           where c.Name.ToUpper() == id.ToUpper()
                           select c).SingleOrDefault();
            if ( contact == null)
            {
                // send 404 error
                HttpResponseMessage msg = new HttpResponseMessage(HttpStatusCode.NotFound);
                throw new HttpResponseException(msg);
            }
            return contact;
        }
        // Insert new contact
        public void Post(Contact contact)
        {
            try
            {
                ContactsDataContext ctx = new ContactsDataContext();
                ctx.Contacts.InsertOnSubmit(contact);
                ctx.SubmitChanges();
            }
            catch (Exception ex)
            {
                // send 500 error
                HttpResponseMessage msg = new HttpResponseMessage();
                msg.StatusCode = HttpStatusCode.InternalServerError;
                msg.ReasonPhrase = "Error while adding contact -> " + ex.Message;
                throw new HttpResponseException(msg);
            }

        }

        // Update existing contact - id is name and contact contains new data
        public void Put(string id, Contact contact)
        {
            ContactsDataContext ctx = new ContactsDataContext();
            var dbcontact = (from c in ctx.Contacts
                             where c.Name.ToUpper() == id.ToUpper()
                             select c).SingleOrDefault();

            if (dbcontact != null)
            {
                dbcontact.Email = contact.Email;
                dbcontact.Mobile = contact.Mobile;
                ctx.SubmitChanges();
            }
            else
            {
                // send 404 error
                HttpResponseMessage msg = new HttpResponseMessage(HttpStatusCode.NotFound);
                throw new HttpResponseException(msg);
            }

        }
        // delete an existing contact by name - id is name here
        public void Delete(string id)
        {
            ContactsDataContext ctx = new ContactsDataContext();
            var contact = (from c in ctx.Contacts
                           where c.Name.ToUpper() == id.ToUpper()
                           select c).SingleOrDefault();

            if (contact != null)
            {
                ctx.Contacts.DeleteOnSubmit(contact);
                ctx.SubmitChanges();
            }
            else
            {
                // send 404 error
                HttpResponseMessage msg = new HttpResponseMessage(HttpStatusCode.NotFound);
                throw new HttpResponseException(msg);
            }
        }
    }
}

As we have created required classes for LINQ to SQL and Web API, lets now move on to a simple HTML page that uses AngularJS to consume Web API.

AngularJS Client

Now we use AngularJS in HTML page to make Ajax calls to Web API. We specially use ngResource module and $resource object of AngularJS to access our Web API from a simple HTML page using Ajax calls.

Add Angular.js and Angular-resource.js scripts to Scripts folder in your project. You can either download them manually from AngularJS website or use Nuget to install them into your project. In case of Nuget Package Manager select the following packages to install.

AngularJs Core
AngularJs Resource

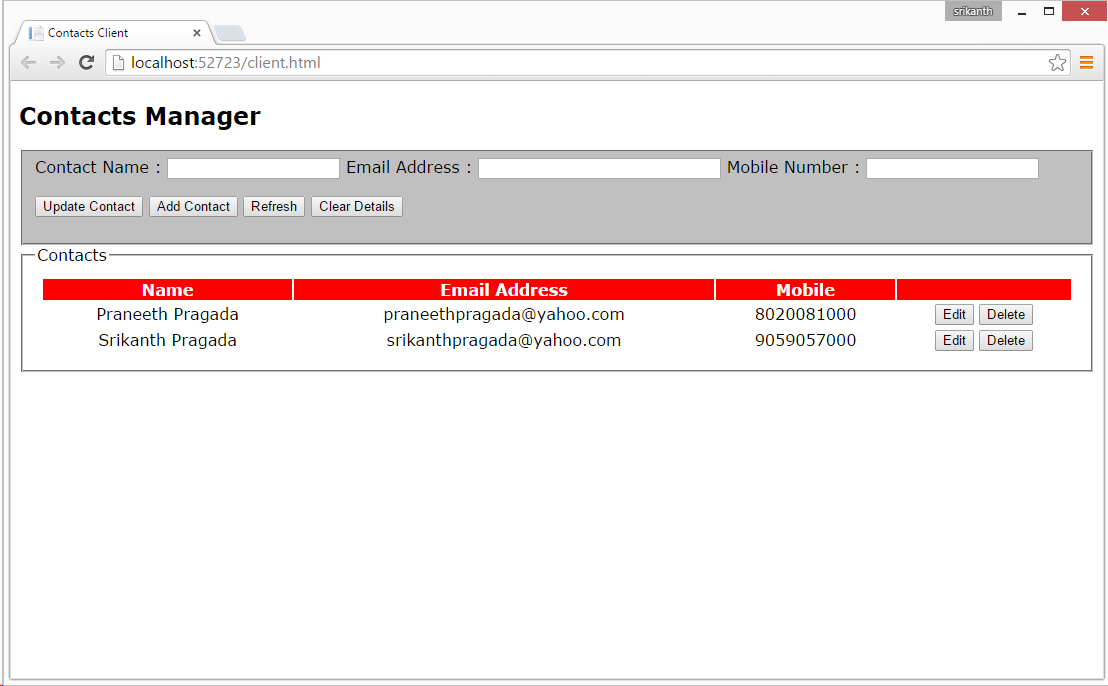

As soon as you run client it displays contacts taken from Web API.

NOTE: You have to change port number in the URL so that it points to your Web server port number or you may have to change complete URL if you are hosting Web API differently.

The following table shows the functionality of each button.

Button	What it does?
Add Contact	Makes a POST request to Web API to add a new contact
Update Contact	Makes a PUT request to Web API to update an existing contact. First we need to click on Edit button in table to bring data in the row for editing.
Refresh	Makes a GET request to Web API and displays the results in the table
Clear Details	Clears all textboxes
Edit	Copies the data in the current row to textboxes to enable user to edit details. Subsequently user can click on Update Contact to update details in the database by sending PUT request to Web API
Delete	Takes confirmation from user and upon confirmation sends DELETE request to Web API to delete the contact in the current row.

Client.html

<!DOCTYPE html>
<html>
<head>
    <title>Contacts Client</title>
    <style>
        body {
            font-family : Verdana;
            font-size : 12pt;
        }
        .heading {
            color:white;
            font-weight : bold;
            background-color:red;
        }
        td {
            text-align : center;

        }
        .message {

            font-size:12pt;
            font-weight :bold;
        }
    </style>
    <script src="Scripts/angular.js"></script>
    <script src="Scripts/angular-resource.js"></script>
    <script>
        var contacts = angular.module("contacts", ['ngResource']); // this module depends on ngResource module

        var controller = function ($scope, $resource) {  // controller uses $resource, which is part of ngResource
            $scope.contact ={};
            $scope.getContacts = function() {
                var request = $resource("http://localhost:52723/api/Contacts");
                $scope.contacts = request.query();
            };

            $scope.addContact = function () {
                var request = $resource("http://localhost:52723/api/Contacts");
                request.save($scope.contact,
                       function (data) {        // success function
                           $scope.error = "Successfully Added Contact [" + $scope.contact.Name + "]";
                           $scope.contact = {};
                           $scope.getContacts();
                       }
                       ,
                       function (data) {       // error function
                           $scope.error = "Sorry! Could not add  contact [" + $scope.contact.name + "]";
                       }
                 );
            };

            $scope.deleteContact = function (name) {
                var res = confirm("Do you really want to delete contact [" + name + "]?");
                if (!res)
                    return;

                var request = $resource("http://localhost:52723/api/Contacts/:name");
                request.delete( { name : name },
                       function (data) {        // success function
                           $scope.error = "Successfully Deleted Contact [" + name + "]";
                           $scope.getContacts(); // refresh
                       }
                       ,
                       function (data) {       // error function
                           $scope.error = "Sorry! Could not delete contact [" + name + "]";
                       }
                 );
            };


            $scope.updateContact = function () {

                // create a custom action with name update
                var request = $resource("http://localhost:52723/api/Contacts/:name",
                      { name : $scope.contact.Name },
                      { update : { method : 'put'} }
                      );
                // call custom action update to make PUT request
                request.update( $scope.contact,
                      function (data) {        // success function
                           $scope.error = "Successfully Updated Contact [" + $scope.contact.Name + "]";
                       }
                       ,
                       function (data) {       // error function
                           $scope.error = "Sorry! Could not update contact [" + $scope.contact.Name + "]";
                       }
                 );


            };

            $scope.editContact = function (name) {
                for (var idx in $scope.contacts) {
                    if ($scope.contacts[idx].Name == name) {
                        $scope.contact = $scope.contacts[idx];
                        return;
                    }
                }
            };

            $scope.clear = function () {
                $scope.contact = {};
                $scope.error = "";
            }

            // call getContacts() on load to get contacts displayed initially
            $scope.getContacts();
        };

        contacts.controller("ContactsController", controller);  // add Controller to Module
    </script>
</head>
<body ng-app="contacts">
    <div ng-controller="ContactsController">
        <h2>Contacts Manager</h2>
        <fieldset style="background-color: silver">
            Contact Name : <input type="text" ng-model="contact.Name" />
            Email Address : <input type="text" ng-model="contact.Email" size="30" />
            Mobile Number : <input type="text" ng-model="contact.Mobile" />
            <p />
            <input type="button" value="Update Contact" ng-click="updateContact()" />
            <input type="button" value="Add Contact" ng-click="addContact()" />
            <input type="button" value="Refresh" ng-click="getContacts()" />
            <input type="button" value="Clear Details" ng-click="clear()" />
            <span ng-bind="error" class="message"></span>
            <p />
        </fieldset>

        <fieldset>
            <legend>Contacts</legend>
            <table   style="width:100%; padding: 5pt">
                <tr class="heading">
                    <th>Name </th>
                    <th>Email Address</th>
                    <th>Mobile</th>
                    <th></th>
                </tr>
                <tr ng-repeat="contact in contacts">
                    <td>{{ contact.Name }}</td>
                    <td>{{ contact.Email }}</td>
                    <td>{{ contact.Mobile }}</td>
                    <td>
                       <button ng-click="editContact(contact.Name)">Edit</button>
                       <button ng-click="deleteContact(contact.Name)">Delete</button>

                    </td>
                </tr>
            </table>
        </fieldset>
    </div>
</body>
</html>
